- Size: 3
- Place of Origin: Jinan, China
- Brand Name: Daymax
- Model Number: DM6090
- Weight: 350.000 kg
Technical parameter

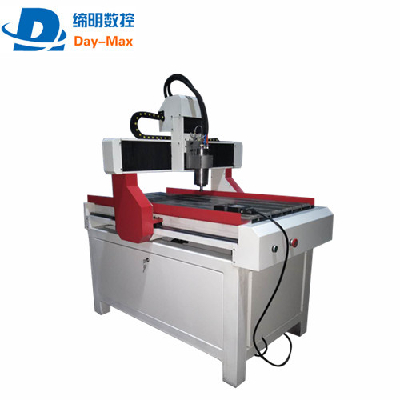

CNC ROUTER DM6090 | |
XYZ axis travel distance | 600*900*150mm |
Feeding height | 150mm |
Table size | 600x1250mm |
Spindle power | 2.2kw water cooling(0-24000RPM) |
Rail type | Taiwan linear rails |
Control system | DSP A11s |
Drive type | Stepper |
Transmit | Ball screw |
Table type | Aluminum profile T slot clamping |
Max travel speed | 12000mm/min |
Working precision | 0.05mm/300mm |
Power | AC220V±10%/50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc |
Command code | HPGL, G code |
Machine/packing size | 1.35*1.1*1.3m/1.49*1.24*1.5m |
Net/Gross weight | 300kg/350kg |
Features
1) Working area: 600mm*900mm*100mm
2) Working table: T-Slot clamping type
3) 2.2 kw water cooling spindle
4) DSP A11s controller system
5) Taiwan linear rails
6) Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc software
Application
1,Materials: Wood, MDF, plastic, foams, PVC, aluminum, copper, acrylic, glass, and soft metals etc.
2,Advertising & Decoration industries: advertising signs, logo production, acrylic engraving and cutting, blaster molding, art and craft making, PVC words, light words, plastic words, various types of landmark model.
Package&Delivery
Delivery time: Within 10-15 days after receiving your deposit
Package: Wooden case or as your requirement
After-sale Service
1. one year warranty
2. 24-hour online technical support
3. free training at factory
4. Wear parts supply
5. Technical service overseas
