Product Details
- Size: 12
- Place of Origin: Jinan, China
- Brand Name: Daymax
- Model Number: DM1325
- Weight: 1300.000 kg
Technical parameter

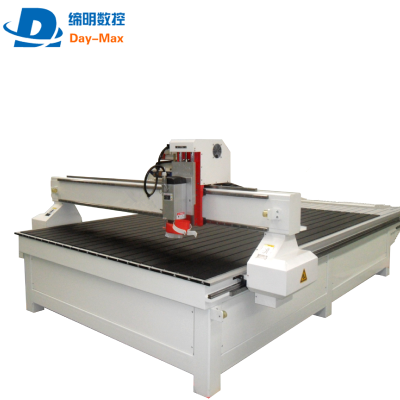

| CNC ROUTER DM1325 | |
| XYZ axis travel distance | 1300x2500x200mm |
| Feeding height | 200mm |
| Table size | 1300x3050mm |
| Spindle power | 3/3.5/4.5/6kw water/air cooling(0-24000RPM) |
| Rail type | Square rails |
| Control system | DSP A11s |
| Drive type | Easy servo motor and driver |
| Transmit | Oblique gear rack |
| Table type | Aluminum profile T slot clamping/ Vacuum T-slot clamping |
| Max travel speed | 50000mm/min |
| Max working speed | 25000mm/min |
| Working precision | 0.05mm/300mm |
| Repeated positioning accuracy | 0.01mm |
| Power | AC220V±10%/50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc |
| Command code | HPGL, G code |
| Machine/packing size | 3.05*2*1.62m/ 3.16*2.13*1.86m |
| Net/Gross weight | 1000kg/1300kg |
Package&Delivery
Delivery time: Within 10-15 days after receiving your deposit
Package: Wooden case or as your requirement
After-sale Service
1. one year warranty
2. 24-hour online technical support
3. free training at factory
4. Wear parts supply
5. Technical service overseas
